QTV-522 High-Pressure Ball Valve (520 Bar)
High-Capacity Precision Control for Advanced Hydrogen Infrastructure
Engineered for Extreme Pressure and Sustained Performance

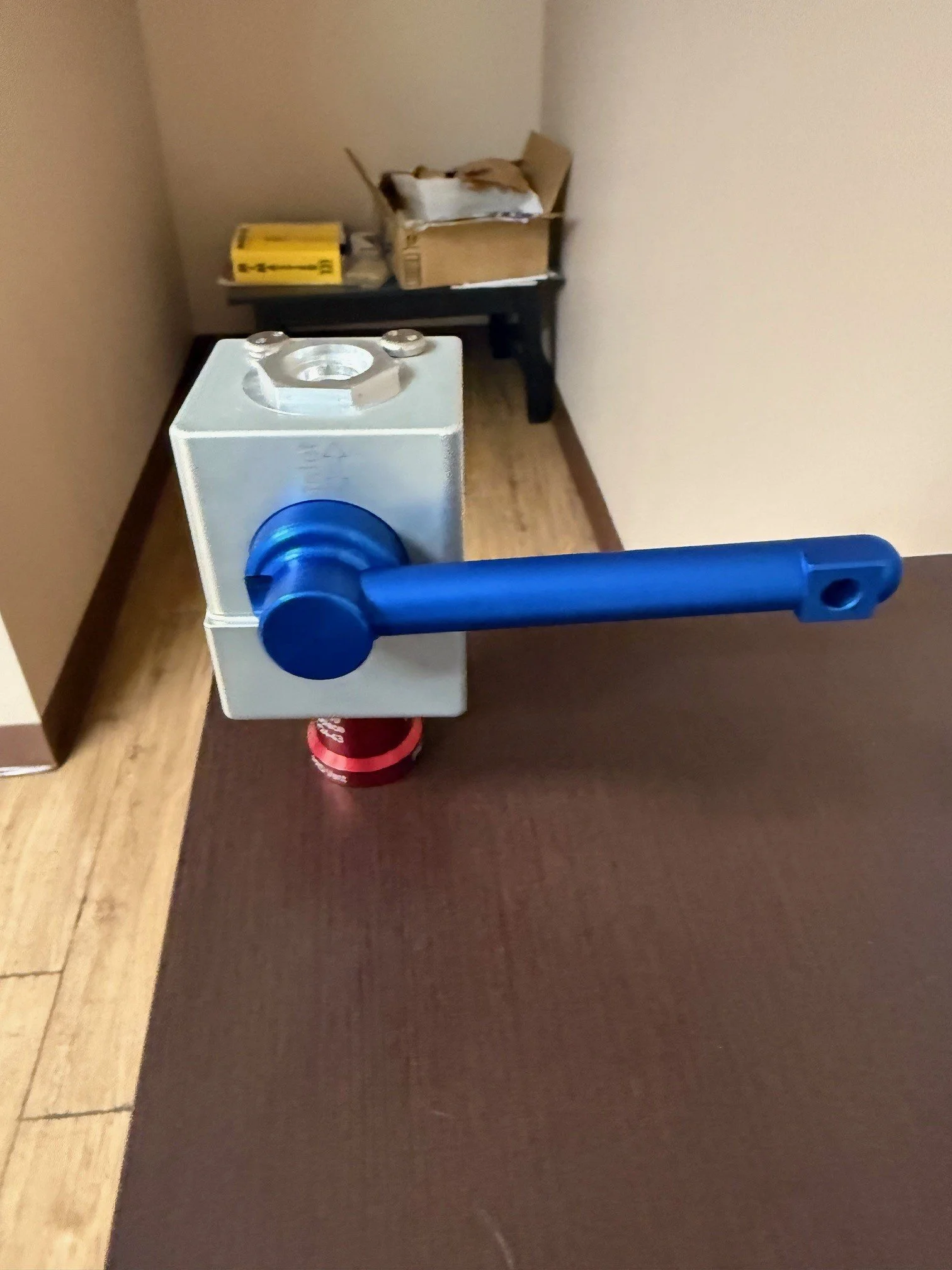

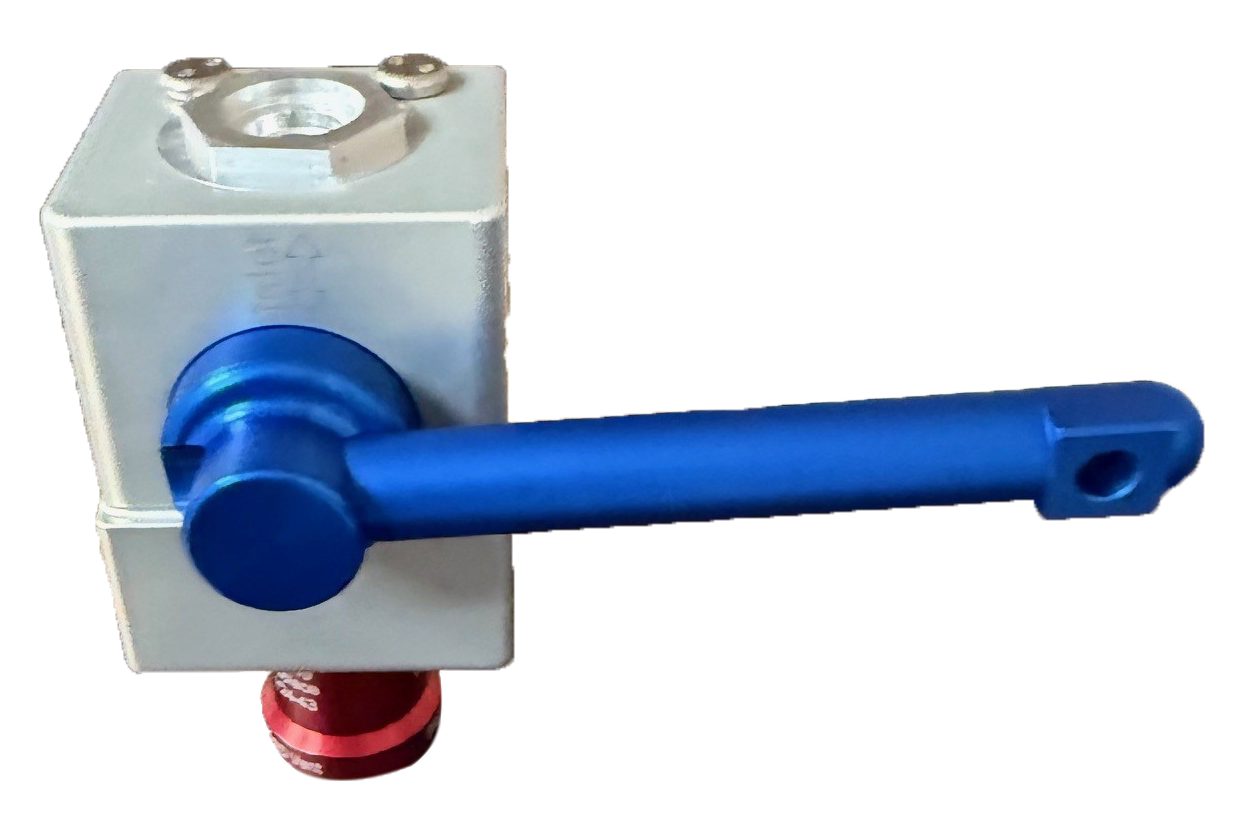

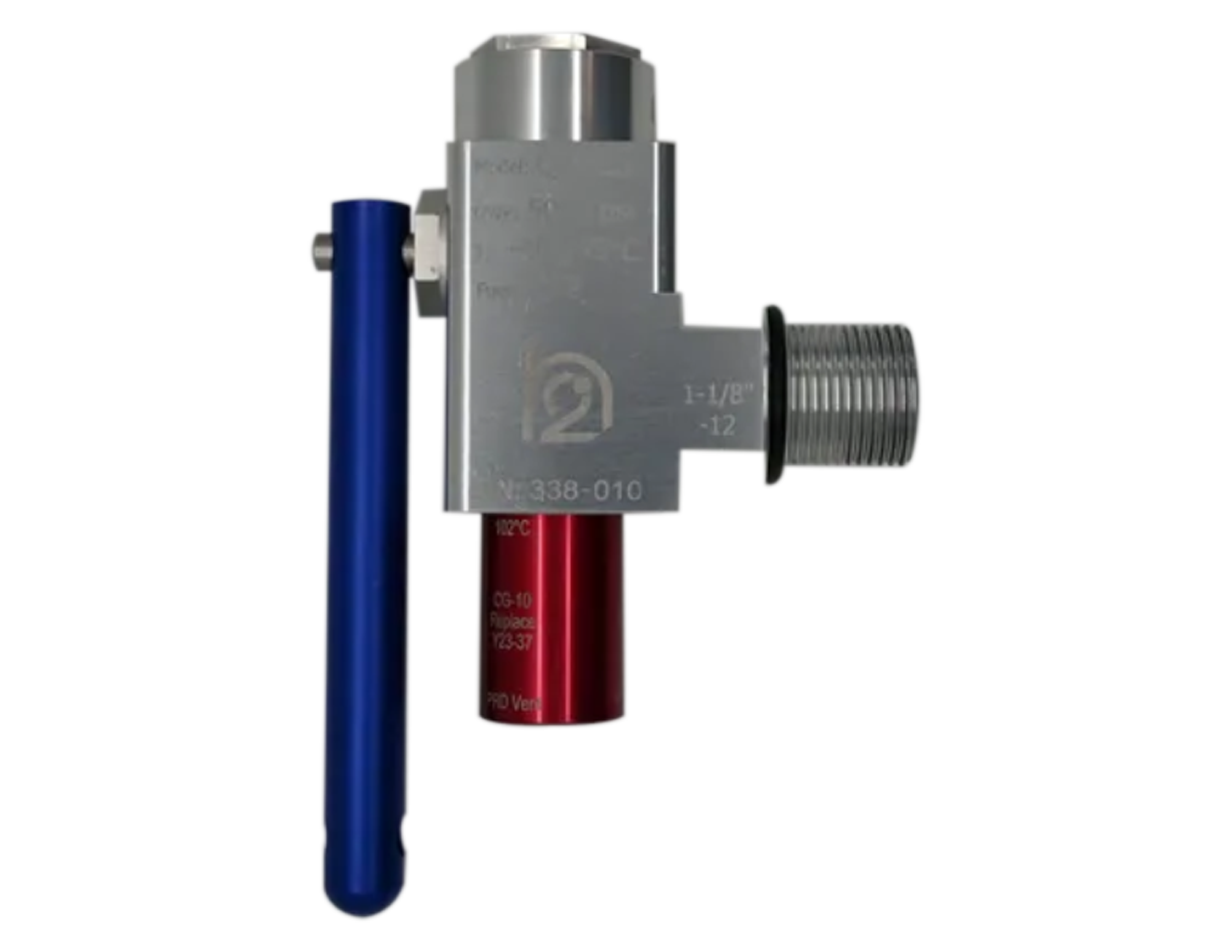

The QTV-522 is the high-pressure flagship of our valve lineup, specifically engineered to manage the intense demands of 520 bar gaseous Hydrogen (GH2) and industrial gas distribution. As a compact, lightweight, 1/4-turn trunnion-style ball valve, it delivers precision flow control and mission-critical safety through its integrated Pressure Relief Device (PRD).
While optimized for high-density hydrogen applications (ISO 14687), the QTV-522 is built for consistent industrial service with Natural Gas (CNG), Nitrogen, Helium, and Air. Designed for high-cycle environments, this valve provides the structural integrity and zero-leak reliability necessary for the most demanding mobile pipelines and stationary high-pressure storage banks.
QTV-522 Features
-
Equipped with a built-in PRD featuring a standard trigger temperature of 102°C (216°F), providing an essential safety layer for high-pressure cylinder arrays.
-
Features a 0.2812” thru-bore designed to ensure steady, non-restrictive flow during high-pressure filling and withdrawal cycles.
-
Rated for a Nominal Working Pressure (NWP) of 520 bar (7,540 psi), with a Maximum Working Pressure (MWP) of 650 bar and a burst rating exceeding 1,300 bar.
-
Constructed from premium aluminum to provide an exceptional strength-to-weight ratio, allowing for lighter manifolds without compromising safety at 520 bar.
-
Fully certified for reliable performance in extreme environmental conditions ranging from -40°C to +85°C.
The QTV-522 is manufactured for long-term operational endurance, offering a 20-year service life and the heavy-duty specifications required for elevated pressure management.
Benefits of the QTV-522 Ball Valve
H2 Manufacturing provides the QTV-522 to equip system integrators with a component that balances massive pressure handling with precision engineering.
Superior Flow Efficiency: With an inlet flow capacity (Cv) of 2.08, this valve is optimized for rapid gas transfer, reducing downtime during high-pressure distribution.

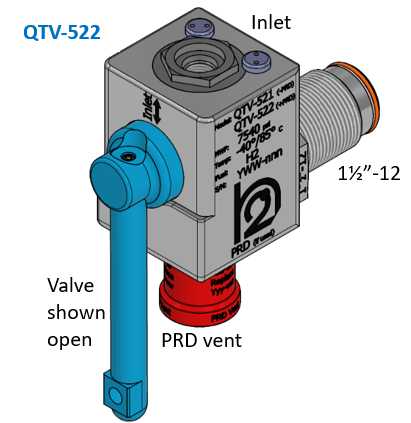

Standardized Infrastructure Integration: Features a 1½”-12 UNF cylinder neck thread and -6 SAE (9/16”-18) I/O ports for seamless installation into high-pressure industrial systems.
Unyielding Leakage Control: Precision-machined to maintain a leakage rate of ≤ 10 Ncc/hr, protecting your gas inventory and ensuring the safety of your site.
Dive Deeper
Secure the technical specifications for your high-pressure project! Download the full QTV-Series data sheet to explore port size options (including MP and NPT), and optional PRD temperature triggers.
Contact Us to Learn More
Ready to upgrade your systems with the QTV-522? Contact H2 Manufacturing today to discuss technical compatibility, port configurations, and bulk procurement for your high-pressure gas applications. Let our specialists provide the high-performance components your project demands!
